Outdoor Unit (ODU)

New Generation ODU:

Single-channel

 ‧ 6GHz Band: XMC 6G-2H, WL L6G-2H, WL U6G-2H

 ‧ 7GHz Band: XMC 7G-2H, WL 7G-2H

 ‧ 8GHz Band: XMC 8G-2H, WL 8G-2H

 ‧ 10GHz Band: WL 10G-2

 ‧ 11GHz Band: WL 11G-2H, WL 11G-3E

 ‧ 26GHz Band: WL 26G-3E

 ‧ 28GHz Band: WL 28G-3E

Dual-channel

 ‧ 6GHz Band: WL-5D L6G/ L6G, WL-5D U6G/ U6G

 ‧ 7GHz Band: WL-5D 7G/7G

 ‧ 8GHz Band: WL-5D 8G/8G



Description:

The Outdoor Unit (ODU) is part of the digital microwave transmission system. It supports a point-to-point digital fixed radio service and works together with the Indoor Unit (IDU) to provide multiple types of service interfaces.

The XMC-2H, WL-2H, WL-2, and WL-3E series ODUs is a type of high power single-channel ODU. The WL-5D series ODUs is a type of dual channels ODU in high power, which supports carrier aggregation (CA). These split-mount microwave products can enable ultra-high performance and ultra-high reliability.

Feature:

‧ XMC-2H, WL-2H, WL-2, WL-3E series

Support BW:

6/7/8G:7/14/28/40/56MHz

10G: 3.5/7/14/28/40/56MHz

11G: 7/14/28/40/56MHz

26/28G: 7/14/28/40/56/112MHz

Support Modulation:

6/7/8/11/26/28G: QPSK-4096QAM

10G: QPSK-2048QAM

 ‧ WL-5D series

Support BW:

L6G/U6G/8G: 7/14/28/40/56/80/112MHz for single-channel mode, 7/14/28/40/56/80/112MHz for CA mode

7G: 7/14/28/40/56MHz

Support Modulation:

L6G/U6G/7/8G: QPSK-4096QAM for single-channel mode, QPSK-2048QAM for CA mode



Entity:

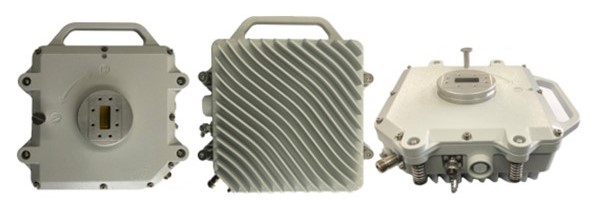

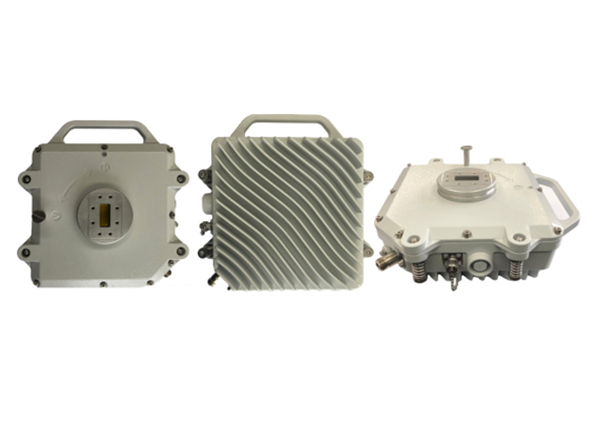

XMC-2H Series 6/7/8GHz Band

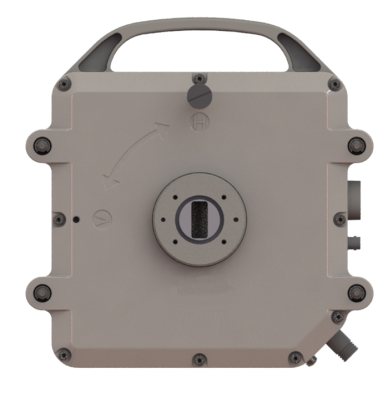

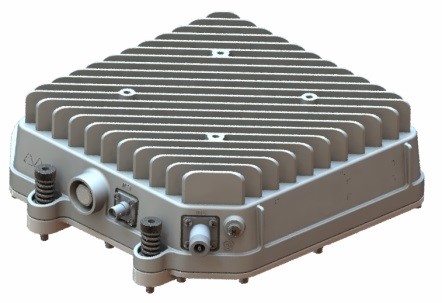

WL-2H, WL-2, WL-3E Series 6/7/8/10/11GHz Band

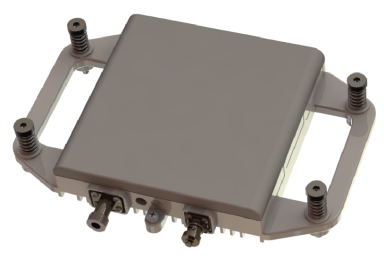

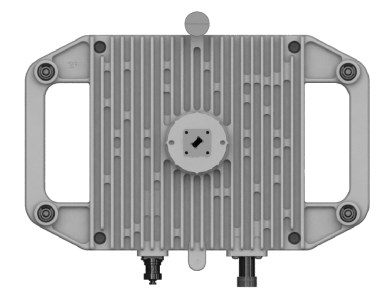

WL-3E Series 26/28GHz Band

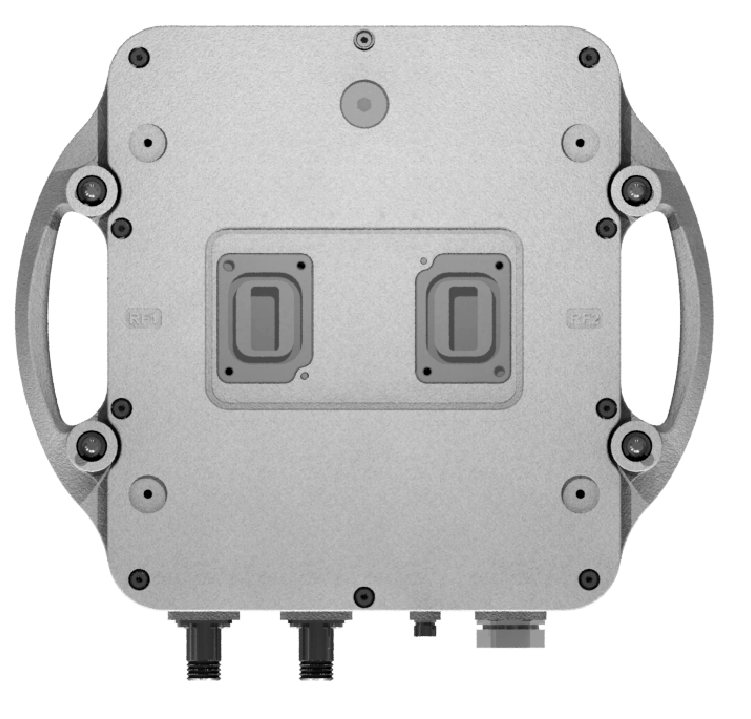

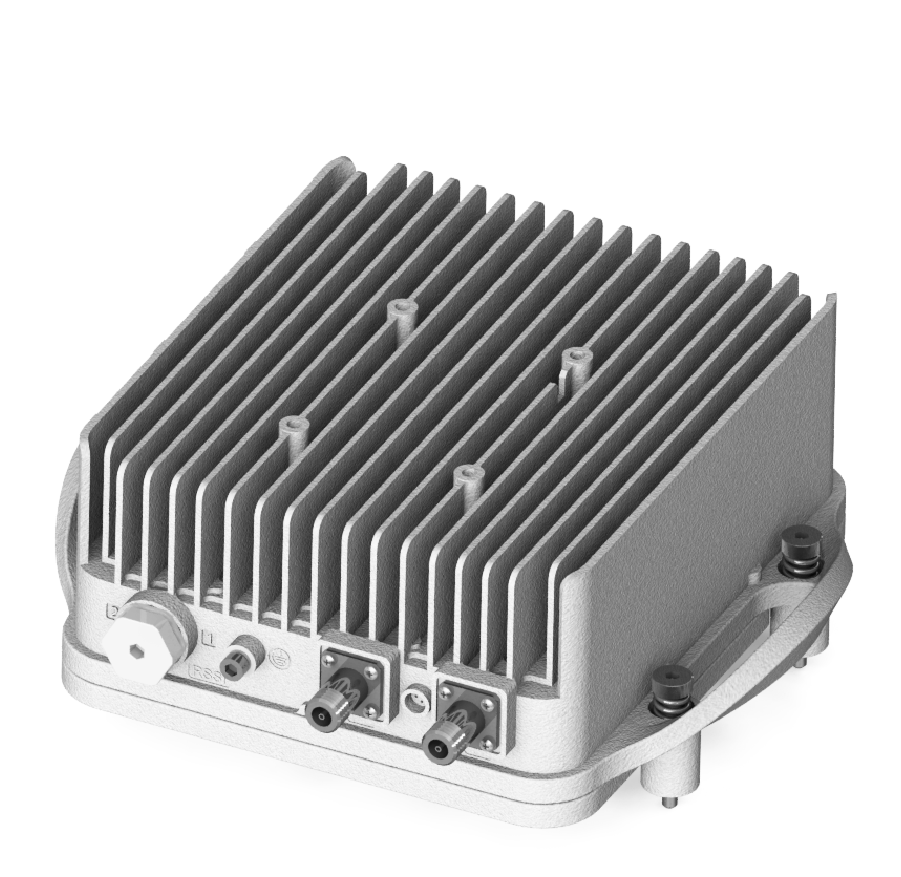

WL-5D Series L6/U6/7/8 GHz Band
