RF Products

Quad-band Combiner

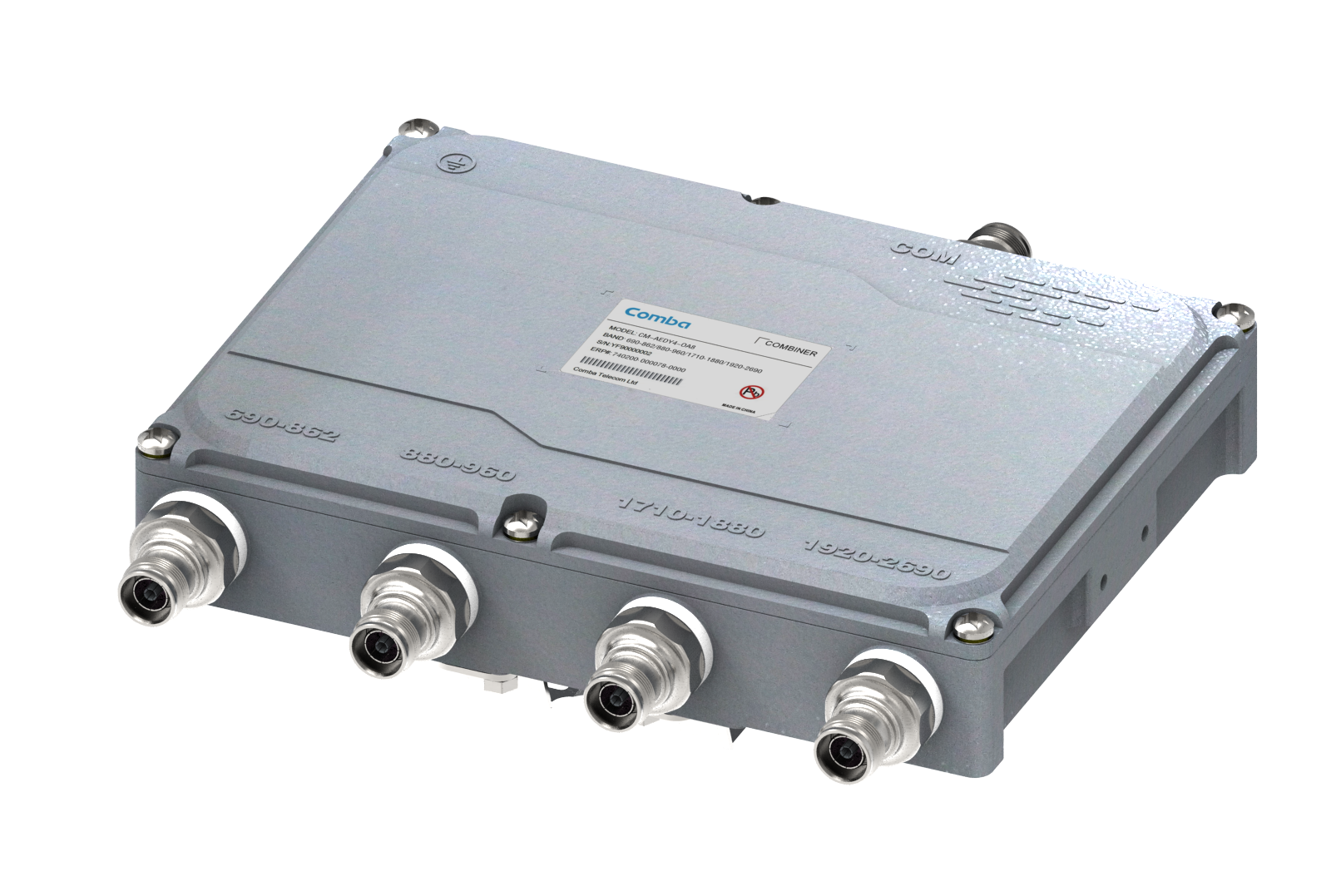

Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
272x203x56.5, 272x203x116.5
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:690-862, B2:880-960, B3:1710-1880, B4:1920-2690
DETAILS

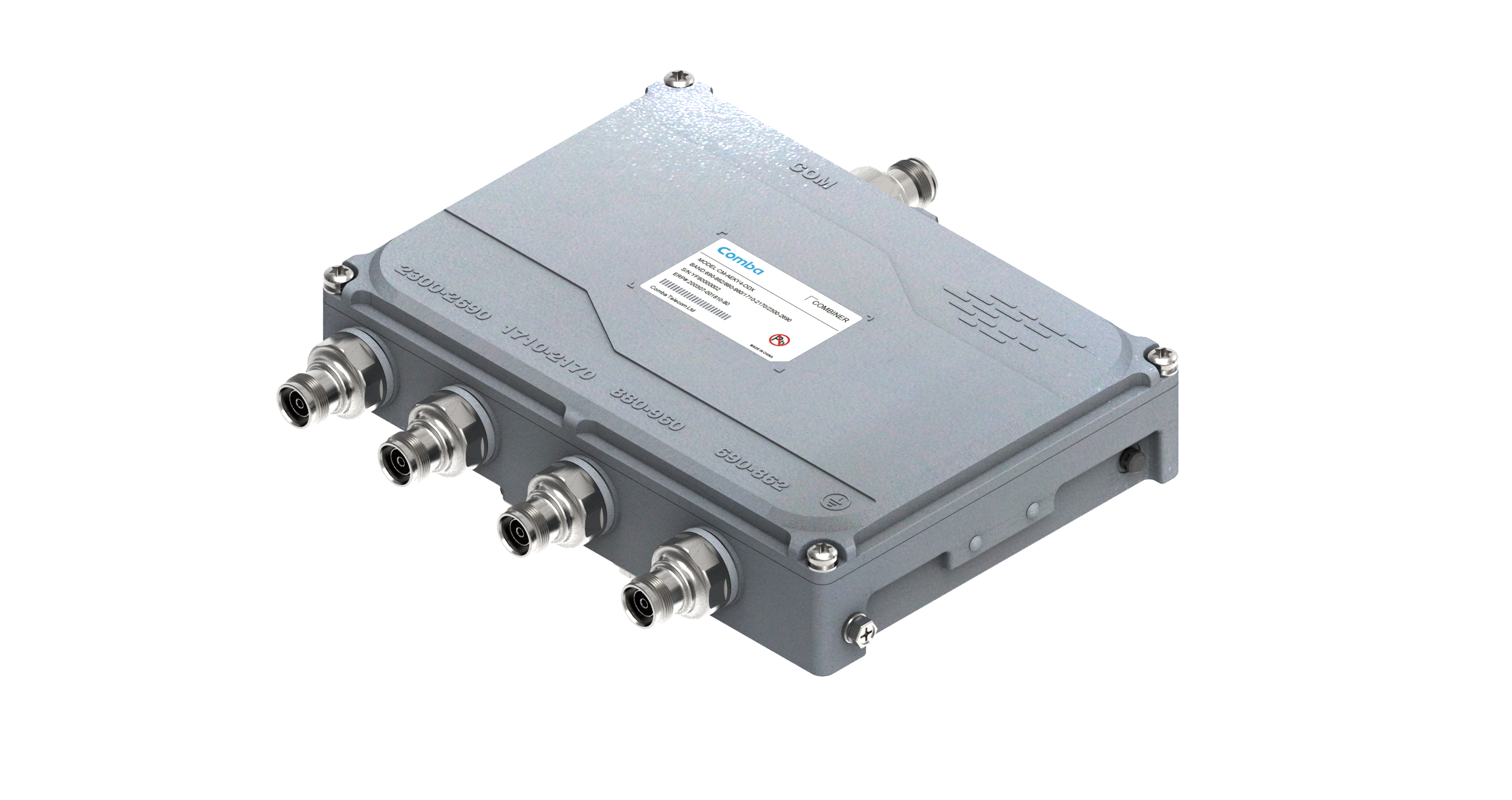

Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
265x190x59.5, 265x190x122.5
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:690-862, B2:880-960, B3:1710-2170, B4:2300-2690
DETAILS

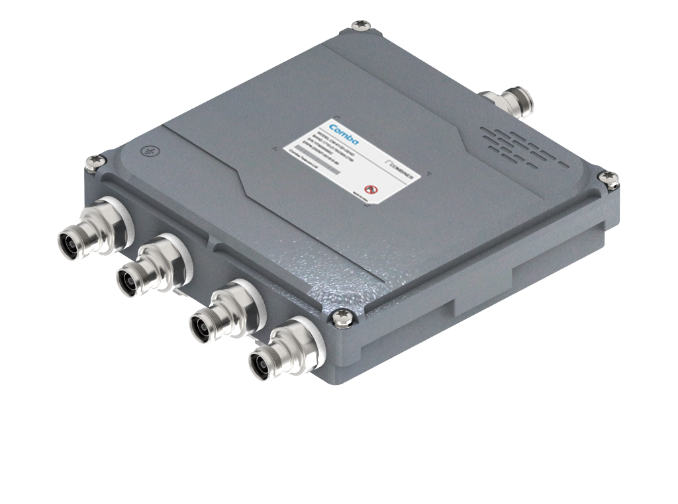

Intermodulation @2x43dBm(dBc)
-155
Dimension (L x W x H in mm)
203x260x54, 203x260x111
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:1710-1880, B2:1920-2170, B3:2300-2390, B4:2500-2690
DETAILS

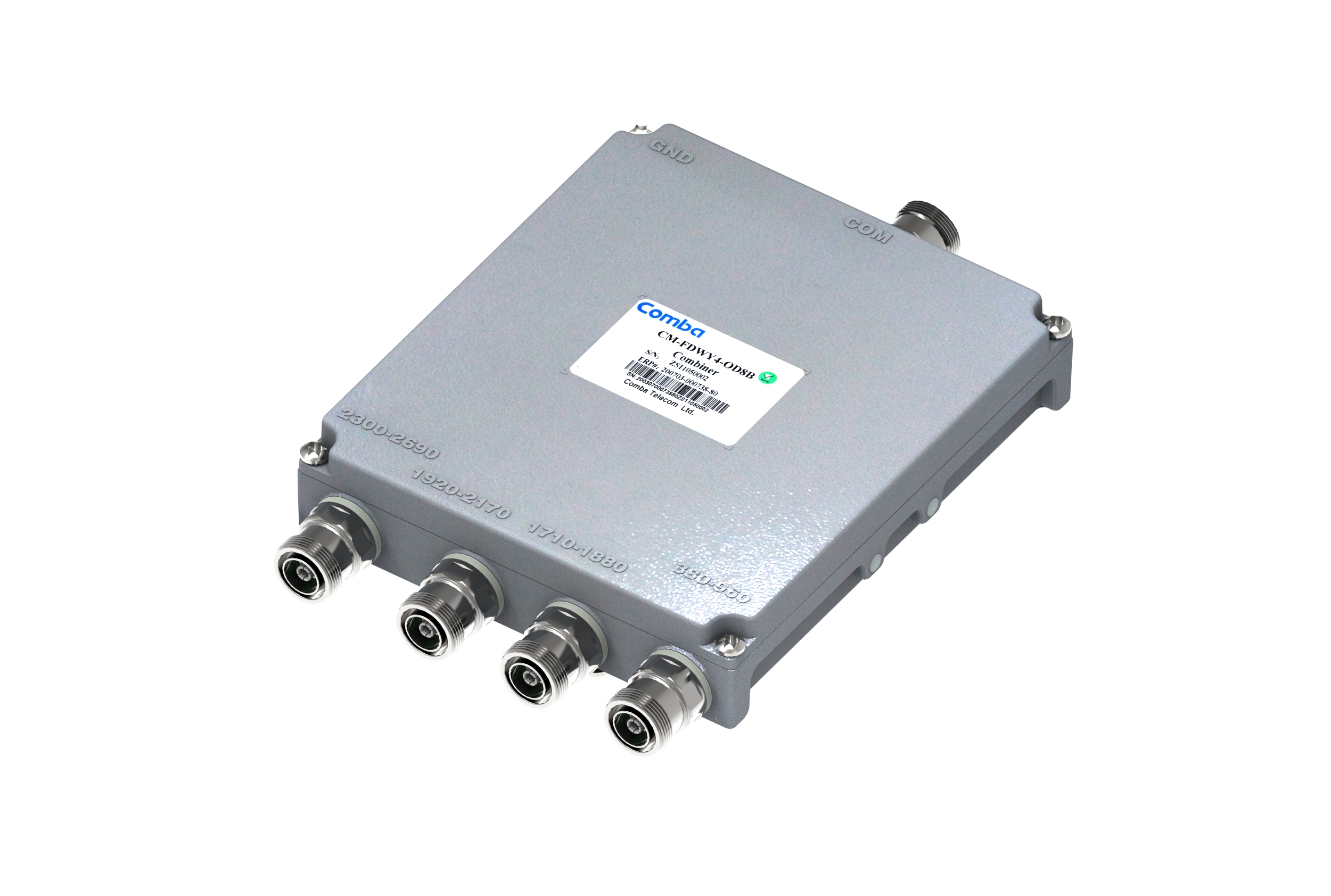

Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
240x210x52, 240x210x105
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:380-960, B2:1710-1880, B3:1920-2170, B4:2300-2690
DETAILS

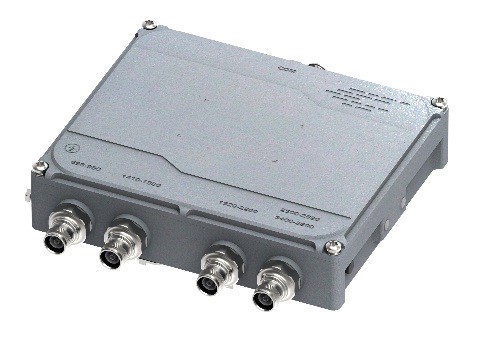

Intermodulation @2x43dBm(dBc)
-155
Dimension (L x W x H in mm)
222x218x52
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:698-960, B2:1350-1518, B3:1710-1880, B4:1920-2170
DETAILS

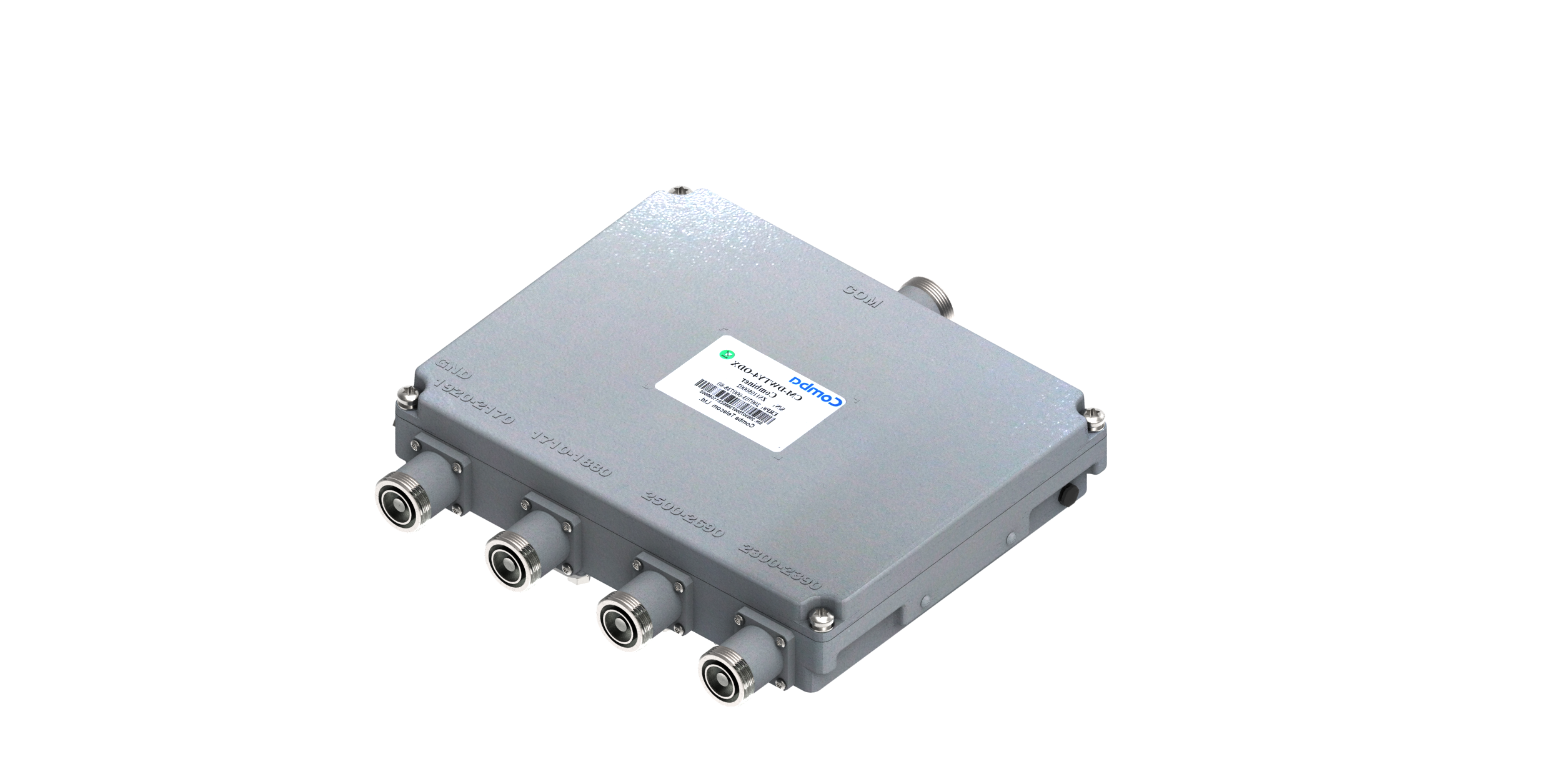

Intermodulation @2x43dBm(dBc)
-155
Dimension (L x W x H in mm)
249x206x58, 249x206x118
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:698-960, B2:1410-1880, B3:1920-2200, B4:2500-2690/3400-3800
DETAILS
