RF Products

Dual-band Combiner

Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
210x228x50,210x232x113
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:1710-1880, B2:1920-2170
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
148x222x51, 148x222x104
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:1710-2170, B2:2300-2700
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
206x181x63,206x181x128
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:698-806, B2:824-960
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
180x182x61, 180x182x126
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

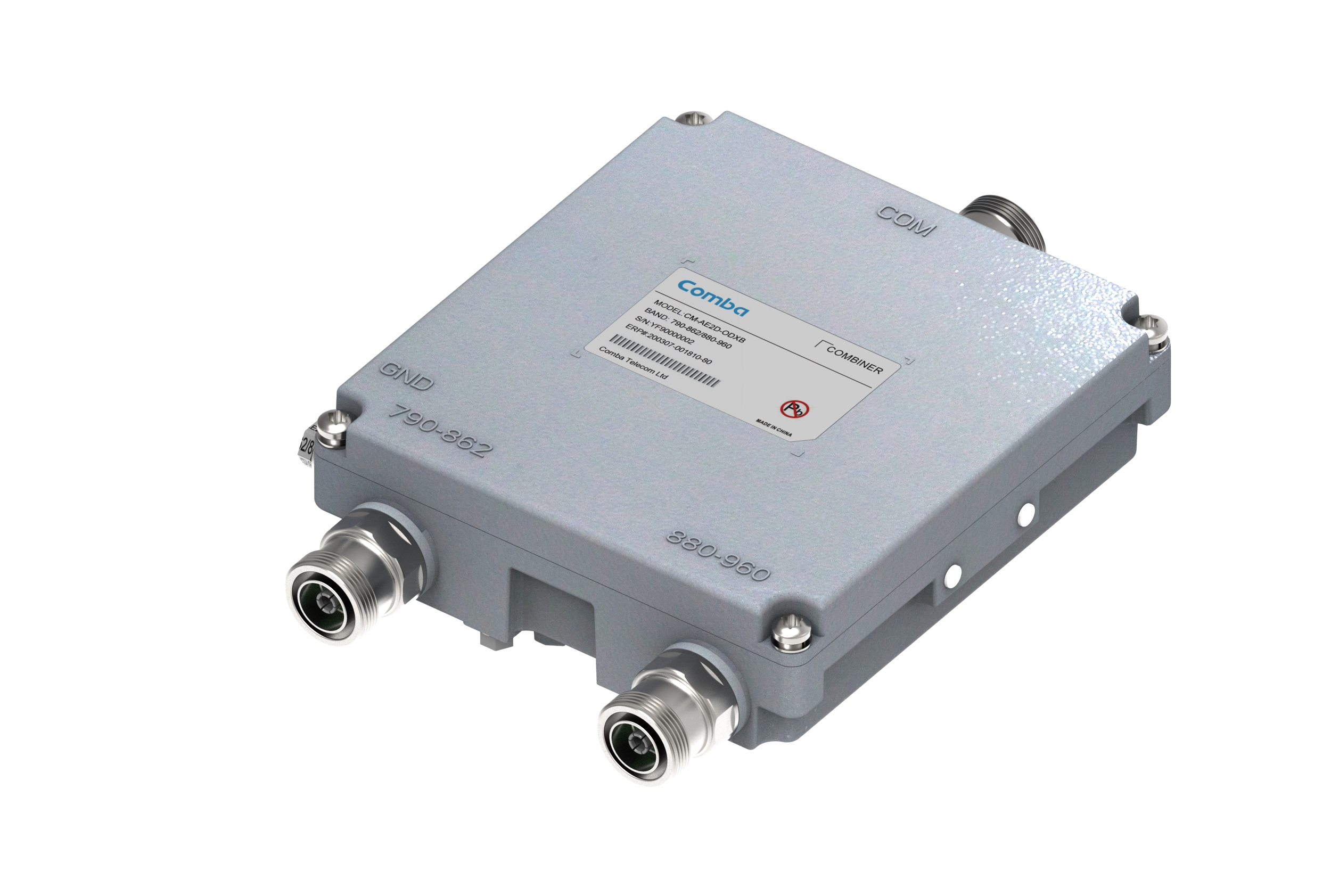

B1:690-862, B2:880-960
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
238x220x55, 238x220x115
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:824-894, B2:898.5-960
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
210x124x51.5
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:1710-1880, B2:1920-2170
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
174x162x51, 174x162x103
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:1710-1880, B2:1920-2700
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
160x128x51, 160x128x104
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

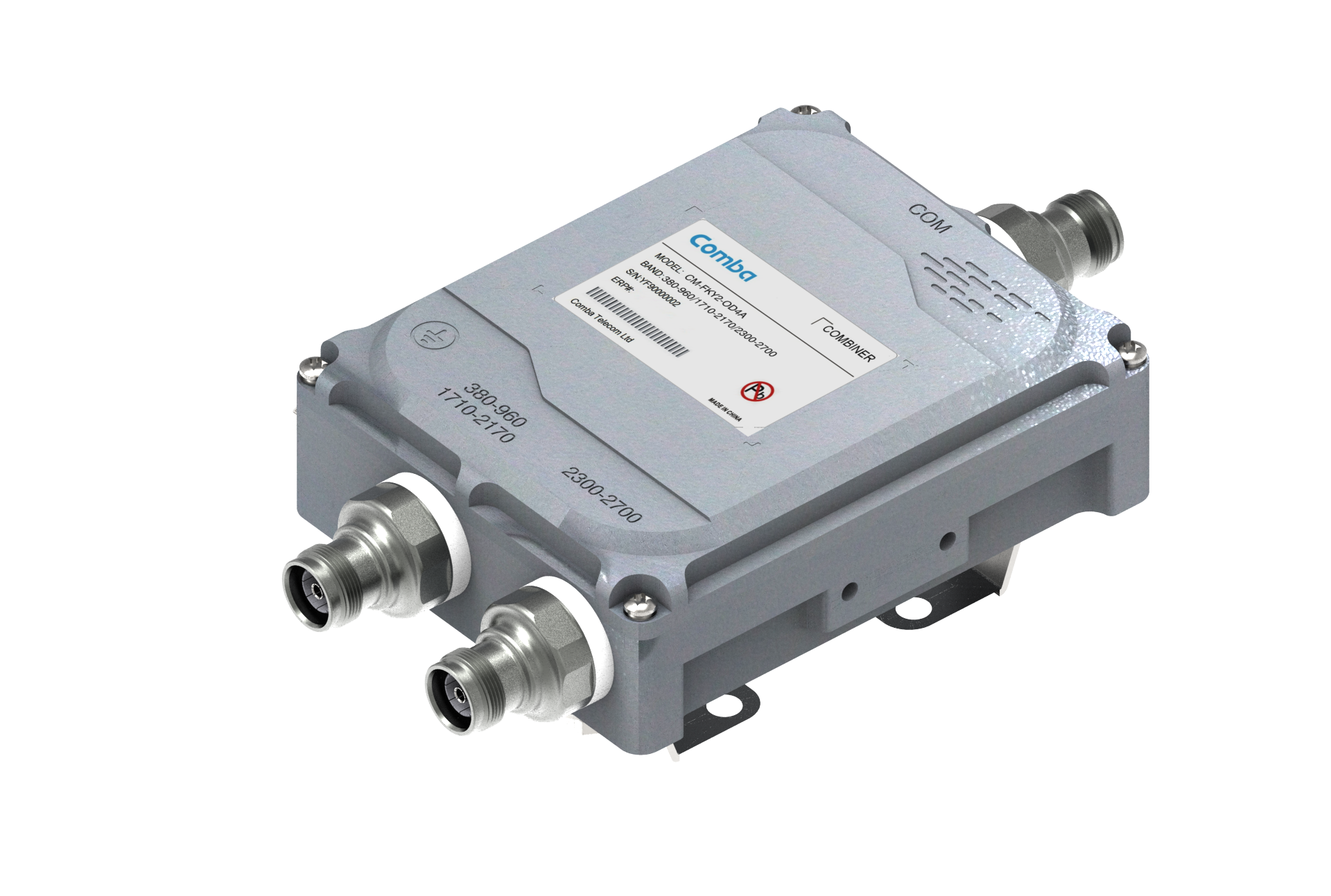

B1:380-960/1710-2170, B2:2300-2700
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
194.5x110x55.5, 194.5x110x115.5
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

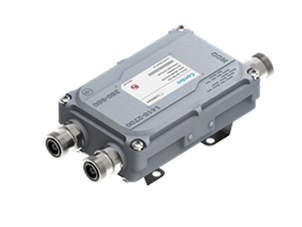

B1:380-960, B2:1410-2700
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
148x121x48
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)
B1:1710-2170, B2:2300-2700
DETAILS
Intermodulation @2x43dBm(dBc)
-155
Dimension (L x W x H in mm)
167x143x45.5, 167x143x108.5
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

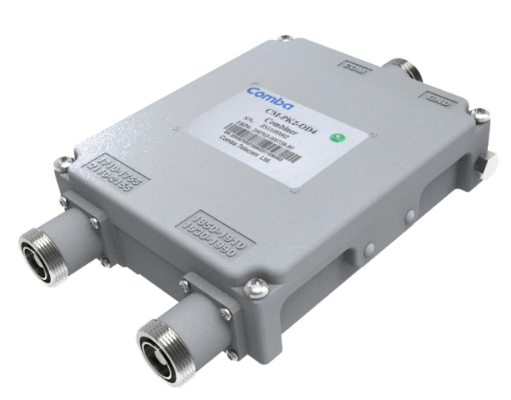

B1:1850-1910/1930-1990, B2:1710-1755/2110-2155
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
99x81x43, 99x81x96
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

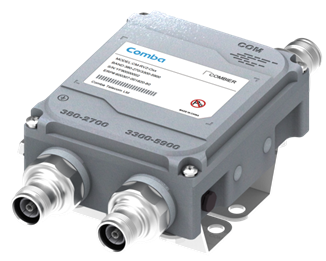

B1: 380-2700, B2: 3300-5900
DETAILS
Intermodulation @2x43dBm(dBc)
-160
Dimension (L x W x H in mm)
130x161x46, 130x164x99
Connector Type
Din Female/4.3-10 Female
Frequency Range (MHz)

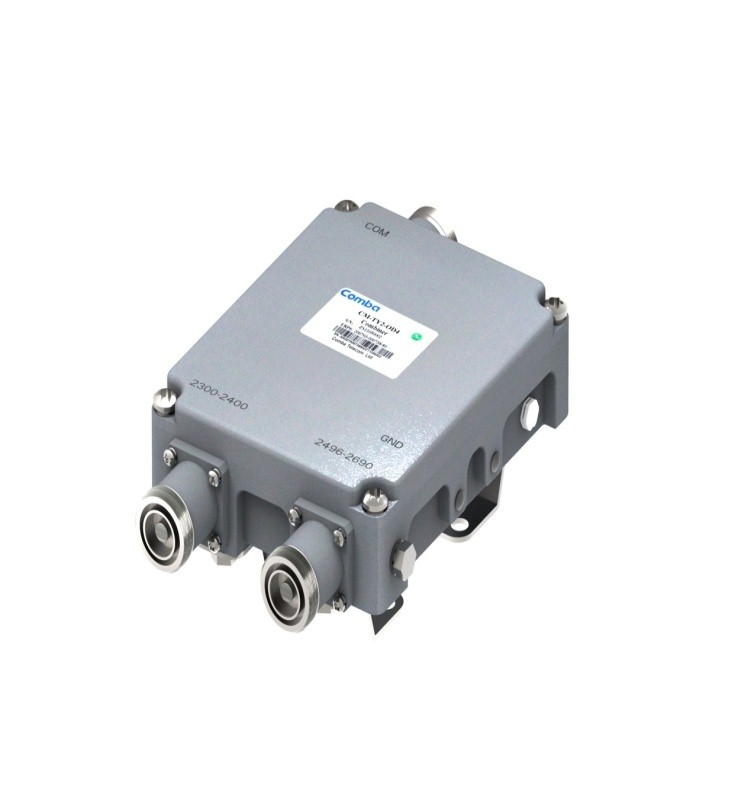

B1:2300-2400, B2:2496-2690
DETAILS
